- New

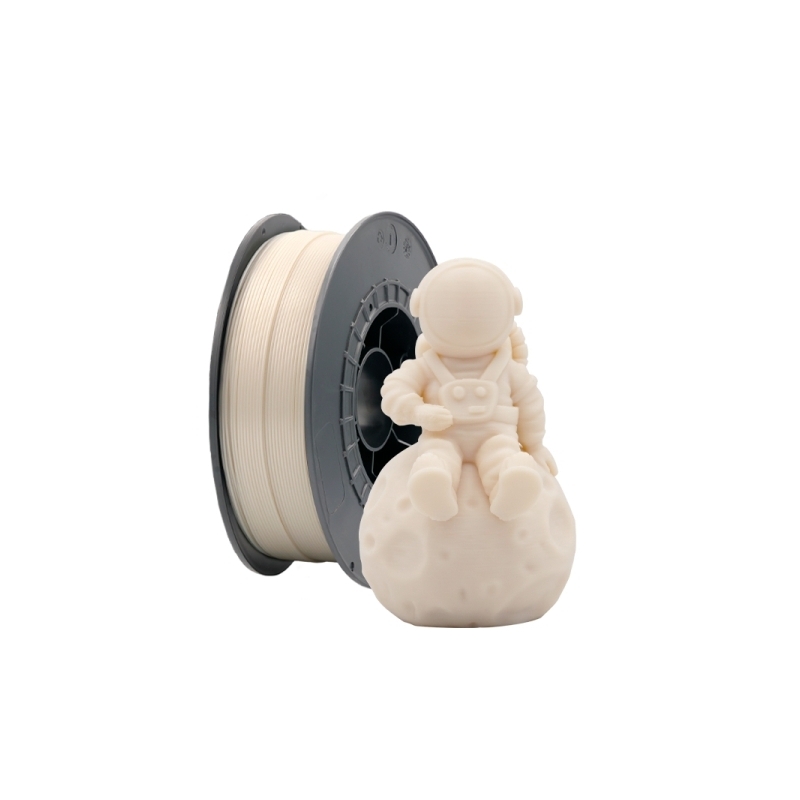

ASA 3D Filament - 1.75mm Diameter - 1kg Spool - Natural
17.99 €
Tax included
ASA is a material similar to ABS, but with greater strength and durability. It stands out for its high resistance to environmental stress cracking and its ability to withstand harsh weather and ultraviolet radiation, keeping its gloss, colour and mechanical properties after long outdoor exposure.
Secure payments
Quick shipping
After-sales service
ASA is a material similar to ABS, but with greater strength and durability. It stands out for its high resistance to environmental stress cracking and its ability to withstand harsh weather and ultraviolet radiation, keeping its gloss, colour and mechanical properties after long outdoor exposure.
It is ideal for outdoor applications that require durability and stability, such as the automotive industry, signage and the aerospace industry. Its resistance to impact and high temperatures makes it perfect for components exposed to mechanical and environmental stress, providing a long-lasting, reliable solution for a wide range of industrial applications.
Features:
- Diameter: 1.75mm.
- 1000 g spool.
General printing parameters:
- Nozzle temperature (240ºC to 260ºC)
- Bed temperature (70ºC to 100ºC)
- Print in an enclosed chamber
Physical properties:
- Density: 1.07 g/cm3 (ASTM D792)
- Mould shrinkage (flow) 3.2mm: 0.4-0.7 % (ASTM D955)
- Melt flow index (220ºC / 10Kg): 12 g/10 min (ASTM D1238)
Mechanical properties:
- Tensile strength, 3.2 mm (@YIELD 50 mm/min): 480 kg/cm2 (ASTM D638)
- Tensile elongation, 3.2 mm (@YIELD 50 mm/min): >6 % (ASTM D638)
- Tensile elongation, 3.2 mm (@Break 50mm/min): 25 % (ASTM D638)
- Tensile modulus (1mm/min): 21,200 kg/cm2 (ASTM D638)
- Flexural strength (15 mm/min): 770 kg/cm2 (ASTM D790)
- Flexural modulus (15 mm/min): 22,500 kg/cm2 (ASTM D790)
- IZOD impact strength, 6.4 mm, 23ºC (sample): 16 kg·cm/cm (ASTM D256)
- IZOD impact strength, 6.4 mm, -30ºC (sample): 4 kg·cm/cm (ASTM D256)
- IZOD impact strength, 3.2 mm, 23ºC (sample): 18 kg·cm/cm (ASTM D256)
- IZOD impact strength, 3.2 mm, -30ºC (sample): 4 kg·cm/cm (ASTM D256)
- Rockwell hardness (R scale): 103 (ASTM D785)
Thermal properties:
- Heat deflection temperature, 6.4 mm, 18.6 Kg (unannealed): 86 ºC (ASTM D648)
- Heat deflection temperature, 6.4 mm, 4.6 Kg (unannealed): 96 ºC (ASTM D648)
- VICAT softening temperature (5 kg, 50ºC/h): 95 ºC (ASTM D1525)
- Flammability (0.8mm): HB class (UL94)
- Flammability (1.6mm): HB class (UL94)
- Flammability (2.5mm): HB class (UL94)
- Flammability (3.2mm): HB class (UL94)
ASA-Natural
Data sheet
- Color
- Natural
- Diameter
- 1.75 mm
- Weight
- 1 kg
- Material
- ASA
Specific References
- EAN13
- 8435490656505
